Environmental Impact & Conclusions

Environmental impact

Material recovery and design for disassembly

A Kindle 4 with physical navigation buttons taken apart, with its components laid out on a workbench
Figure 1. The Kindle 4's components. Clockwise from top left: battery and battery cover, screws, main board, display module, ITO film, back case, frame.
62 Mt
E-waste generated worldwide in 2022 [4]
22.3%
of it documented as properly collected and recycled [4]
82 Mt
Projected annual e-waste by 2030 [4]

The Kindle illustrates a broader e-waste problem: valuable materials are not always easy to recover. Our two components show this difference clearly. The battery cover is a separate metal part, while the screen's conductive coating is integrated into a layered display.

The stainless-steel cover was straightforward to remove. Two screws attach it to the frame, and it is not glued to the battery. The foam pad underneath is attached with double-sided tape, but both the pad and tape peeled away in one piece with little tearing. This leaves a metal part that is easy to identify and suitable for recycling. The battery requires more careful handling, since damage during waste processing can cause fires [8].

The screen presents a more difficult separation problem. Our XRF scans did not detect indium in the ITO film, as discussed on the E-ink Screen page. Recovering a metal distributed through a thin coating requires more than removing a discrete part, and our testing could not measure an indium recovery rate.

Indium supply chain

From zinc ore to the screen

Indium is mainly recovered as a by-product of zinc processing. Its principal mineral host is sphalerite (ZnS), where it occurs alongside other elements [10]. The ore is concentrated, commonly through froth flotation, before zinc processing produces indium-bearing residues. Further leaching and purification separate the indium, which can then be recovered as metal through cementation or electrolysis [11, 12]. Refined indium is used to make ITO for transparent conductive coatings [13].

This makes indium supply dependent on both zinc production and the facilities available to recover it. Mejías et al. also identify China as the leading indium refiner and exporter, highlighting potential vulnerability to geopolitical supply disruptions [10]. Recovering indium from mine waste could diversify supply, although the methods reviewed require further development [10]. Mining and refining also carry environmental costs: weathering of indium-bearing mine waste can release indium into water, particularly under acidic conditions [10]. Indium remains a key raw material for ITO-based screens, even as researchers develop transparent conductive ceramic films that use less indium [15]. These studies explain the general supply chain, but do not identify the mine or refinery that supplied our Kindle 4.

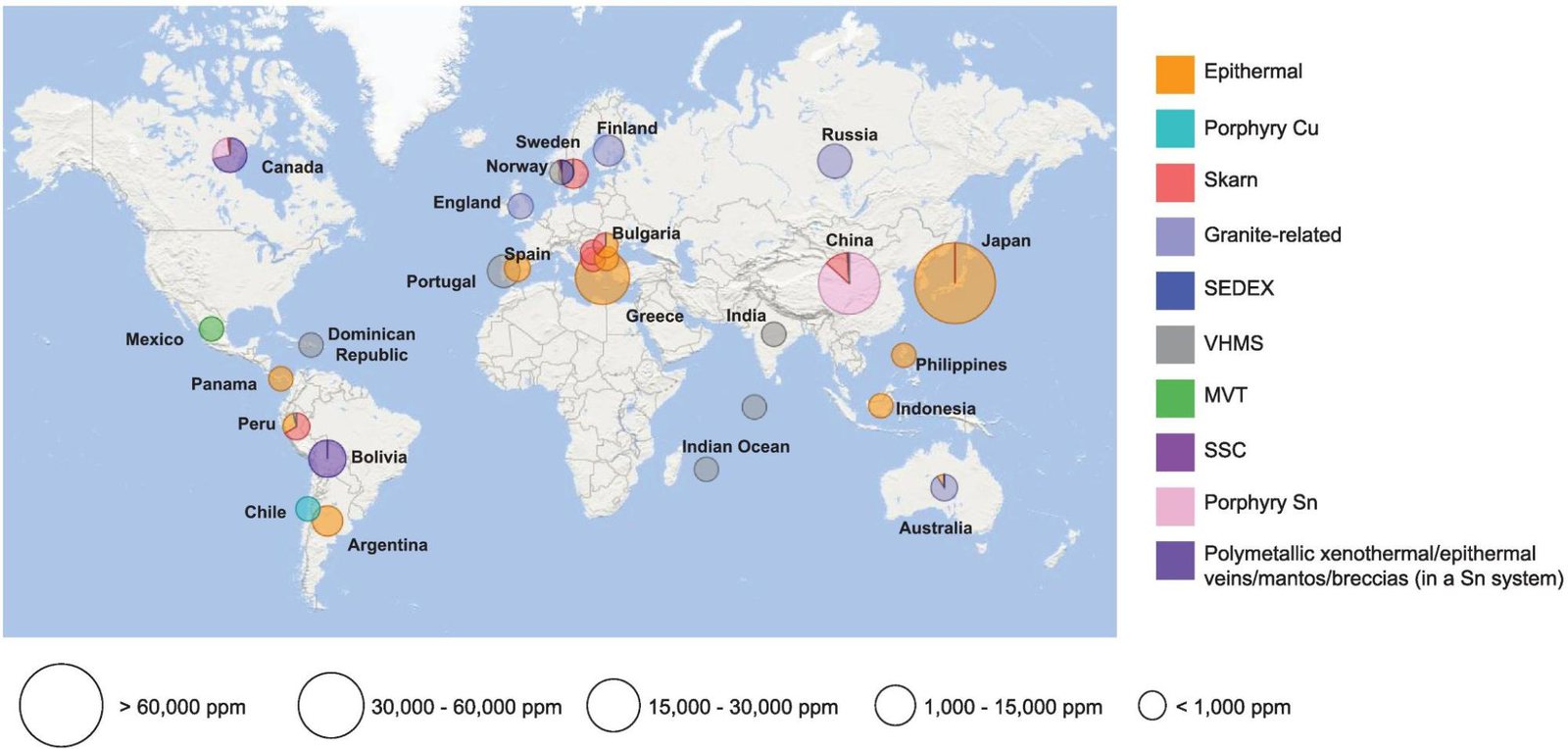

World map of indium-bearing mineral occurrences, with bubbles sized by average indium concentration and coloured by deposit type; large concentrations appear in China, Japan, Bolivia, Peru and parts of Europe
Figure 2. Average indium concentrations in studied indium-bearing minerals by country and geological deposit type. Bubble size represents concentration in parts per million (ppm), while colours indicate deposit types. The map shows mineral concentrations, rather than national reserves, production, or refining capacity. Reproduced from Mejías et al. [10].

Design for disassembly

Removing screws did not release every part

Several components remained attached by glue or double-sided tape after we removed their screws. We questioned why both were necessary, although our testing did not establish the adhesive's additional function.

The screen was especially difficult to remove. We had to break it apart piece by piece, making reuse impossible. The iFixit Kindle 4 Screen Replacement guide describes the same problem: adhesive covers the screen's entire contact surface with the bezel, and removal involves breaking the display into fragments [9]. A broken screen can still be replaced, but an intact display cannot necessarily be recovered using that procedure.

Once the parts were separated, all adhesive residue we encountered came off with light wiping using ethanol. The surfaces were tightly bonded, leaving no accessible gap through which we could apply ethanol before separation.

Indium recovery

Can the coating be recycled?

Indium is recycled from manufacturing scrap, including spent ITO sputtering targets, but discarded screens present a more dispersed waste stream [12]. LCD recycling research describes dismantling and pretreatment, followed by chemical leaching and selective indium separation [13]. These methods are relevant to ITO recovery, but they do not report measured recovery rates for Kindle e-ink displays.

Our teardown showed an additional barrier: the screen required destructive removal, while the stainless-steel battery cover separated cleanly. This extra disassembly work could make screen-material recovery less practical than recycling the cover, although we did not measure how often either component is recycled. Breaking the screen prevented reuse of the display, but does not rule out chemical recovery of its materials.

Recovery also has to justify its own environmental costs. In one LCD study, conventional recycling performed better than a process that added indium recovery because the additional treatment costs outweighed its benefits at the tested concentration [14].

Manufacturer statements

What Amazon offers

Amazon's U.S. mailback program covers shipping and recycling through its certified recycler, Re-Teck, and states that returned devices undergo material reclamation [16]. Its trade-in program also assesses devices for refurbishment and resale, with badly damaged or malfunctioning devices that cannot be reset sent for recycling [17]. However, these disclosures do not specify whether indium from Kindle screens is recovered.

E-ink screens are appealing components for DIY electronics: they remain readable in sunlight and retain an image without continuous power. Soldered’s documentation describes these advantages [18], while its Inkplate boards demonstrate the reuse of recovered Kindle displays [19] in projects such as electronic calendars [20]. This made breaking our screen during removal particularly disappointing. The tightly bonded assembly eliminated the possibility of salvaging it as a working component for another project. Easier separation could preserve that opportunity, extending the display’s useful life before its materials need to be recycled.

Conclusion

We initially assumed that recycling a Kindle would be straightforward: disassemble the device, reuse or recycle the screen, and recover the metals from the frame. Our teardown revealed that our assumptions were completely wrong. While the stainless-steel battery cover separated cleanly and is easy to recycle, removal of the tightly bonded screen required breaking it apart, preventing reuse as a working display. Recovering indium from its thin conductive coating would also require specialized processing, and we could not establish how effectively this is done for Kindle screens. Our suggestion is to redesign the Kindle for easier disassembly, allowing users to recover components for reuse and separate materials for recycling without specialized tools.
